Semi-Automatic Hevery Duty Telescopic Bleacher Seating System
Retractable bleacher seating system material description:
1. Bleacher support is cold-drawn and formed of high-quality carbon steel plates, which can increase the strength and toughness of the material, improve the mechanical properties of the material, and enhance the stability of the structure.
2. Load-bearing wheels: The load-bearing wheels are made of wear-resistant PU wheels, with 40mm spokes and outsourcing high-strength polyurethane, which has sufficient load-bearing strength and appropriate elasticity. The inner layer uses double ball bearings, the middle is a nylon layer, and is covered with The high-toughness and wear-resistant polyurethane layer can withstand heavy loads and rotate flexibly, with little friction, and does not damage the wooden floor. The wheels of the stands are distributed in multiple rows, each row is uneven, which can reduce the stress on the wooden floor and extend the wood Floor life.
3. Load-bearing beam: The size of the load-bearing beam is 50×40×2, 100×50×3, which is installed at the maximum center distance of about 70cm and welded between the main beam and the auxiliary beam. The cold-rolled steel plate with sufficient bearing capacity is used, and after folding, it is sprayed to make it not only has good corrosion resistance, but also has a smooth and clean outer surface. The secondary beam serves as the end element for all wooden support arms and walking surfaces. The supporting arm between the supporting frames is applied to the main beam to eliminate sliding friction and lubricate the roller and nails through the action of the mechanical surface.
4. The movable step: The movable step keel is supported by high-quality carbon steel profiles, and the surface layer is made of 18mm high-strength veneer laminate (17mm laminate + 1mm trihydrogen ammonia board), which is fixed by rivets and auxiliary stands of the stands to ensure the movable steps High strength and structural stability.
5. Decorative profiles: The stand surface is covered with special aluminum alloy, and is attached with special anti-skid lines to increase the strength of the profile and prevent the audience from slipping while walking. The front of the stand bed frame adopts a special aluminum alloy profile to increase the bearing strength. At the same time, the front edge is inlaid with non-slip and wear-resistant rubber and plastic strips, so that they will not fall off, and they can protect the aluminum-titanium alloy strips and prevent the audience from slipping, which is both beautiful and practical.
6. The synchronization mechanism is composed of double-layer guide bearings and side rollers to ensure that the stands make a balanced linear movement when they are telescopic, reducing the friction of the stands. Through the self-locking mechanism, it is ensured that the surface layers of the stands can be expanded and contracted in sequence.
7. Railings: Railings are made of steel material (matte).
8. Seats and chairs: Front-mounted soft-packed seats (without armrests), the grandstand seats are front-mounted, and the overall dimensions of the seat surface: seat width × chair depth × chair back height = 440 × 560 × 500 (mm).
9. Fixing the Telescopic Bleacher Seating.: After the movable stand is in place, it can be fixed at the bottom of the stand and the venue according to the needs of the site, so that it can be stretched to the predetermined position at one time.
| Specifications |
| Product | Retractable bleacher/Telescopic bleacher |
| Material | Chair: HDPE chair or Fabric chair,flame retardant are optional |
| Structure Frame: Cold roll steel dealt with powder coating |
| Flooring: 18mm plywood with anti-slip finish or covered by carpet, Or alumium floor |
| Safety Railing: Steel with powder coating or Stainless steel is optional |
| Chair Type | Bench, Bucket chair, Foldable chair |
| Installation Type | Floore mounted type or Rise mounted type |
| Bleacher Type | Manual/Semi-Motorized/Ful-motorized |
| Operation | Wire control or remote control (Moterized type) |
| Color of Steel Structure | Black or Grey |
| Railings | Safety Railing on two sides of the bleacher, backside railing is optional |
| Step Height | 260mm,280mm,300mm |
| Step Width | 700-900mm |
| Stair Step Width | 800-1000mm |
| Packing | PP woven bag, Carton, Air bubble film |
| MOQ | 100 seats per set |
| Delivery Time | 25-30 days according to the quantity |
| Application | Stadium, Conference Hall, Theatre, etc. |
Product customization process of Telescopic Bleacher Seating
1. Consultation: initial communication to reach cooperation intention
2. Provide demand: determine the type of stand and seat style
3. Definite plan: design a reasonable plan and confirm
4. Sign the contract: quote and sign the production contract
5. Payment of deposit: collect deposit and schedule production
6. Delivery: delivery after payment of the balance
7. If there is demand, we can provide paid overseas installation
Why Choose Us?
Honest merchants: We insist on strict control of product quality, rely on quality to expand the market, and encourage technological innovation.
Quality Assurance: Over the years, we have been trusted by customers with stable products, timely delivery, and excellent after-sales service. We have a broad market and a good reputation.
Price commitment: In order to ensure the reliability of the product, all materials selected are high-quality steel. Under the same competitive conditions, on the basis of not reducing the technical performance of the product, we will sincerely provide it at a preferential price.
Product Tags:
|
|

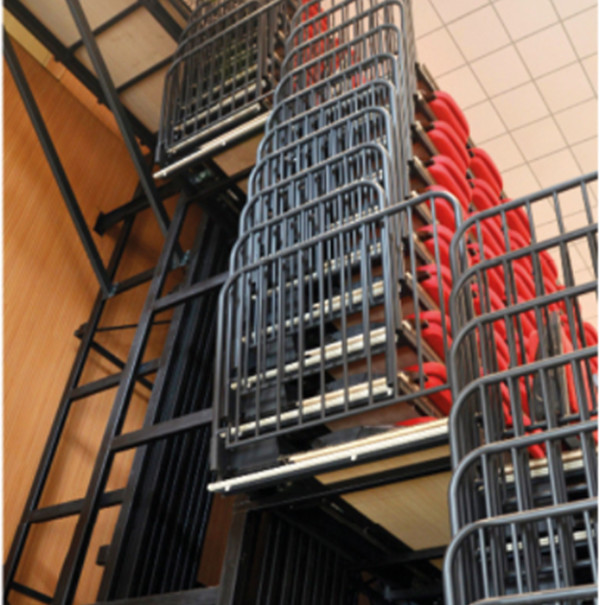

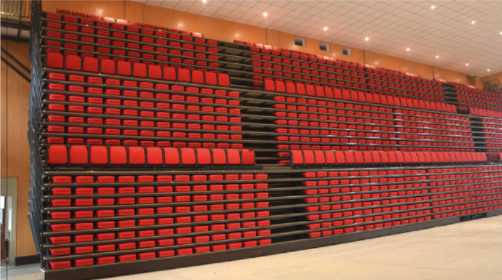

Semi Automatic Telescopic Bleacher Seating Images
|
